Operation example

The Full-Spectrum THz Source

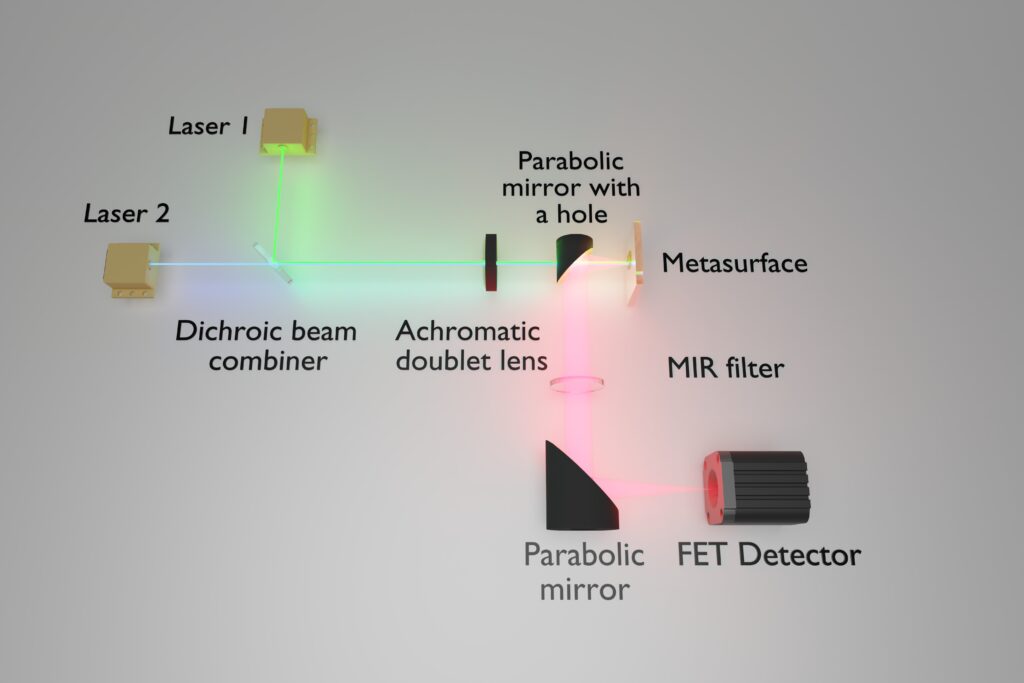

Shown here is a typical setup of the lab based THz source. Thanks to our „giant“ nonlinearity a lab based setup can be constructed out of off the shelf lasers and optical components.

Intrested? Configure your own THz Source

THz Difference-Frequency Visualizer

Laser 1
Type

Wavelength (µm, 5–13)

Laser 2
Type

Wavelength (µm, 5–13)

    Select source types, set wavelengths, and click "Calculate THz".


0 THz 7.5 THz 15 THz

QCL / EC QCL: free wavelength entry, limited to 5–13 µm. CO₂: discrete lines. Tuning range = Δf ± (range₁ + range₂)/2, with ranges: QCL 0.1 THz, EC QCL 5 THz, CO₂ 0 THz.
